3H2O
arch271 - graphics for architects, fall 2016prof. andrea melgarejo de berry + prof. david emmons + ta. nico hsu
three phases, three materials, three structures
solid, liquid, gas
ice, water, vapor
crystalline, amorphous, ephemeral
solid, liquid, gas
ice, water, vapor
crystalline, amorphous, ephemeral

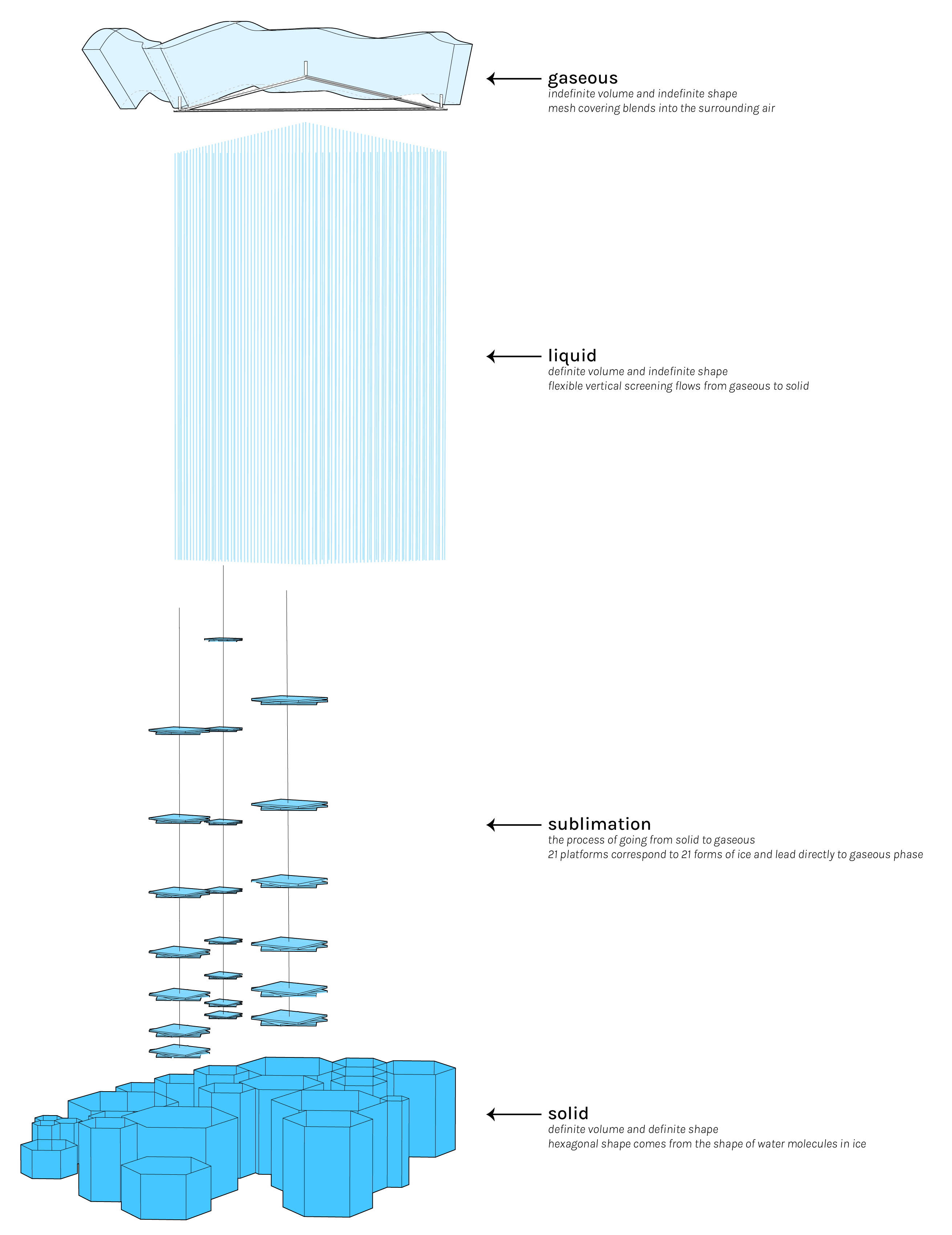

through each layer, the transformation of h2o between each phase is illustrated through different forms and materials.

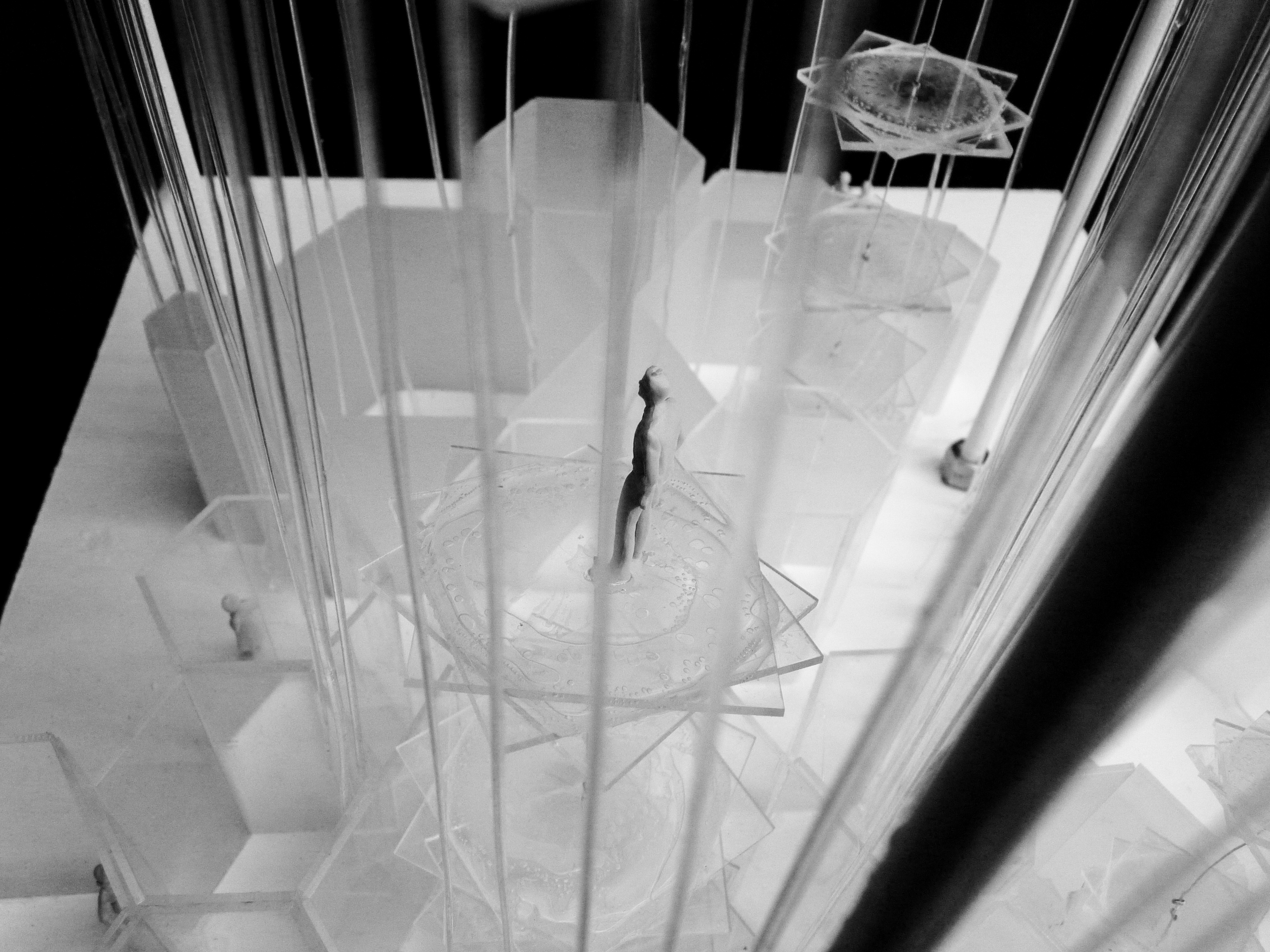

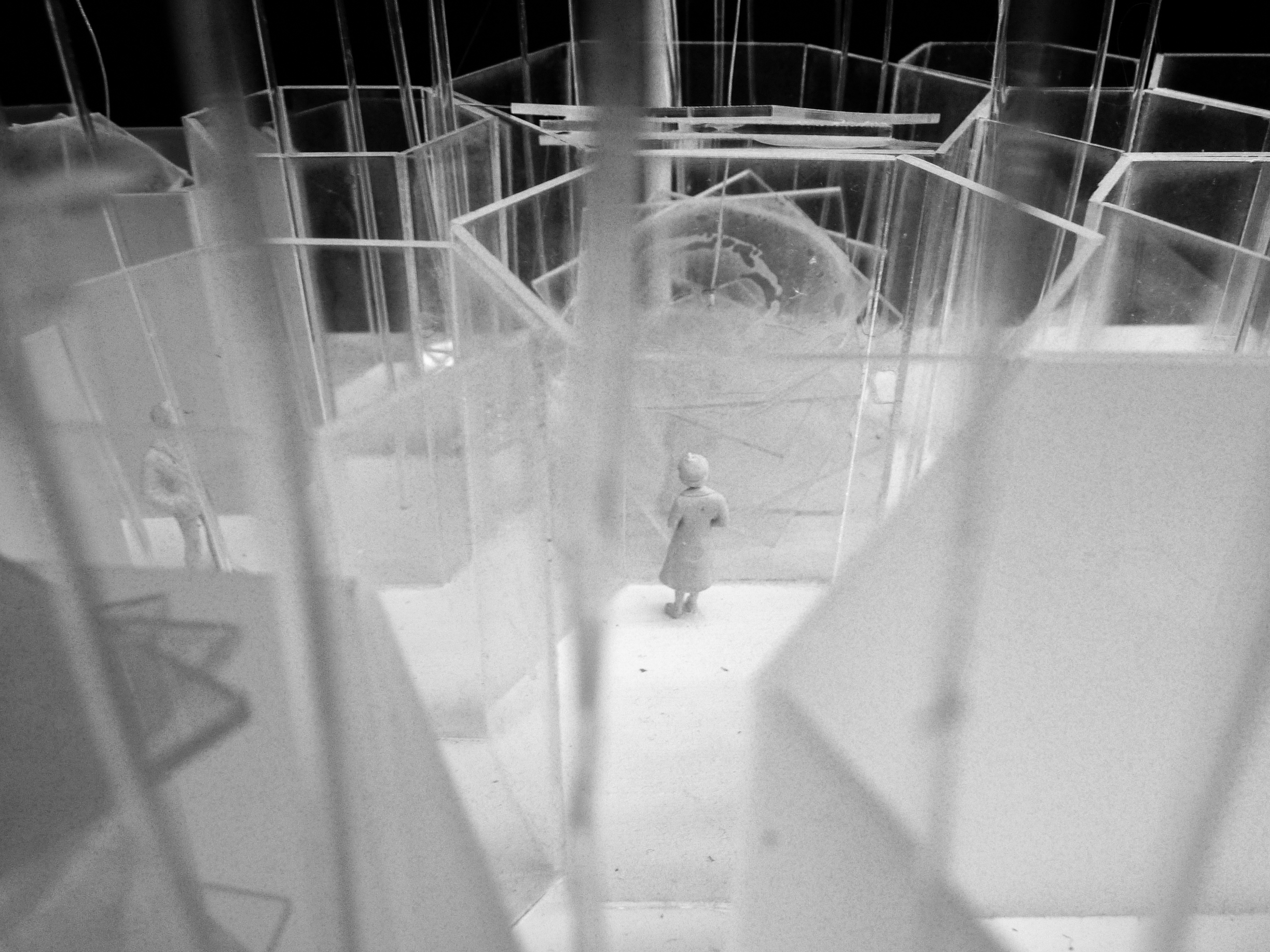

ice - hexagonal acrylic, an interpretation of the natural crystal structure
water - suspended hot glue, created by pausing its flow to show movement

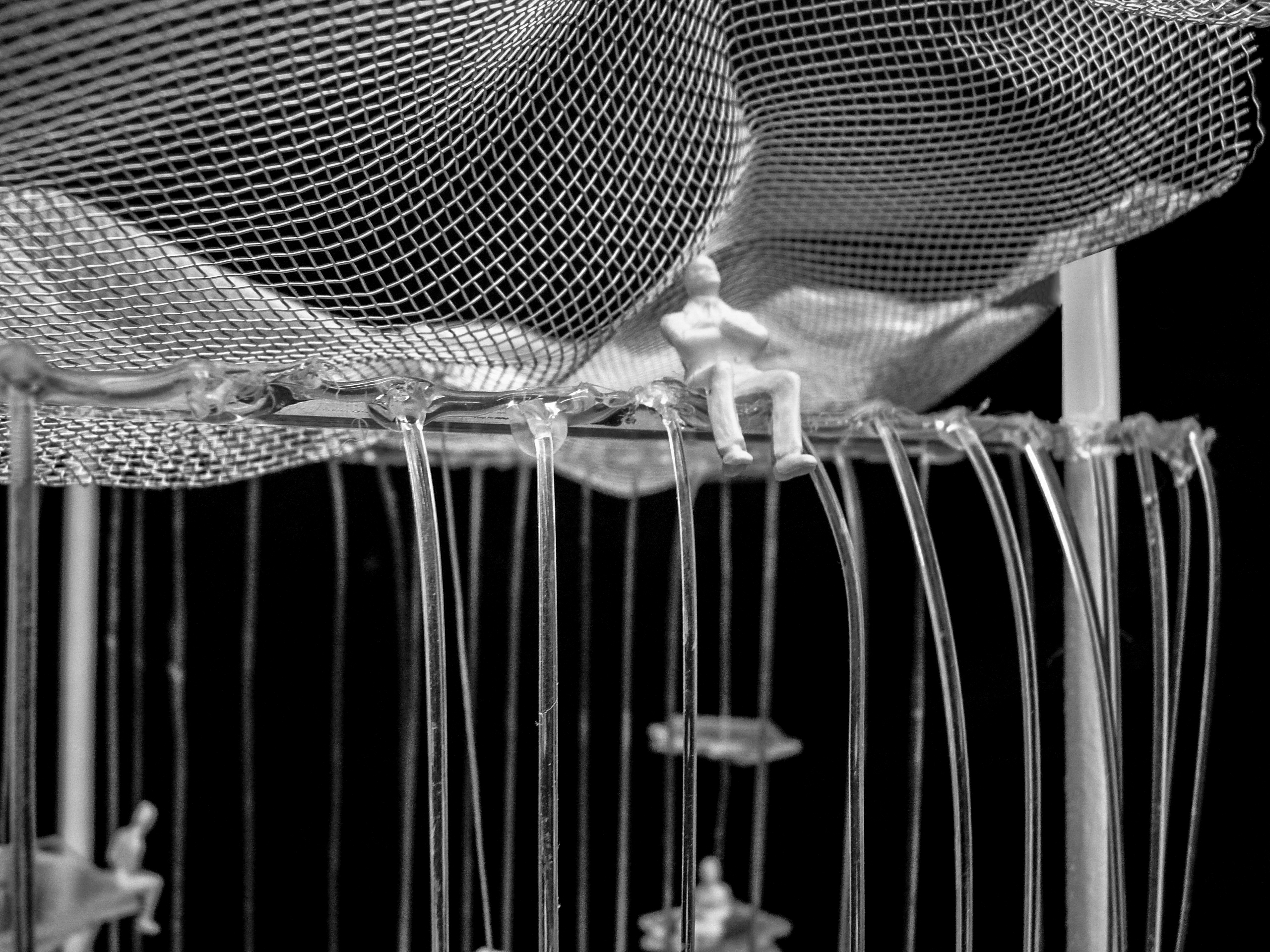

vapor - floating mesh, indefnite area that allows air to pass through the layer
ice - hexagonal acrylic, an interpretation of the natural crystal structure
water - suspended hot glue, created by pausing its flow to show movement
vapor - floating mesh, indefnite area that allows air to pass through the layer
